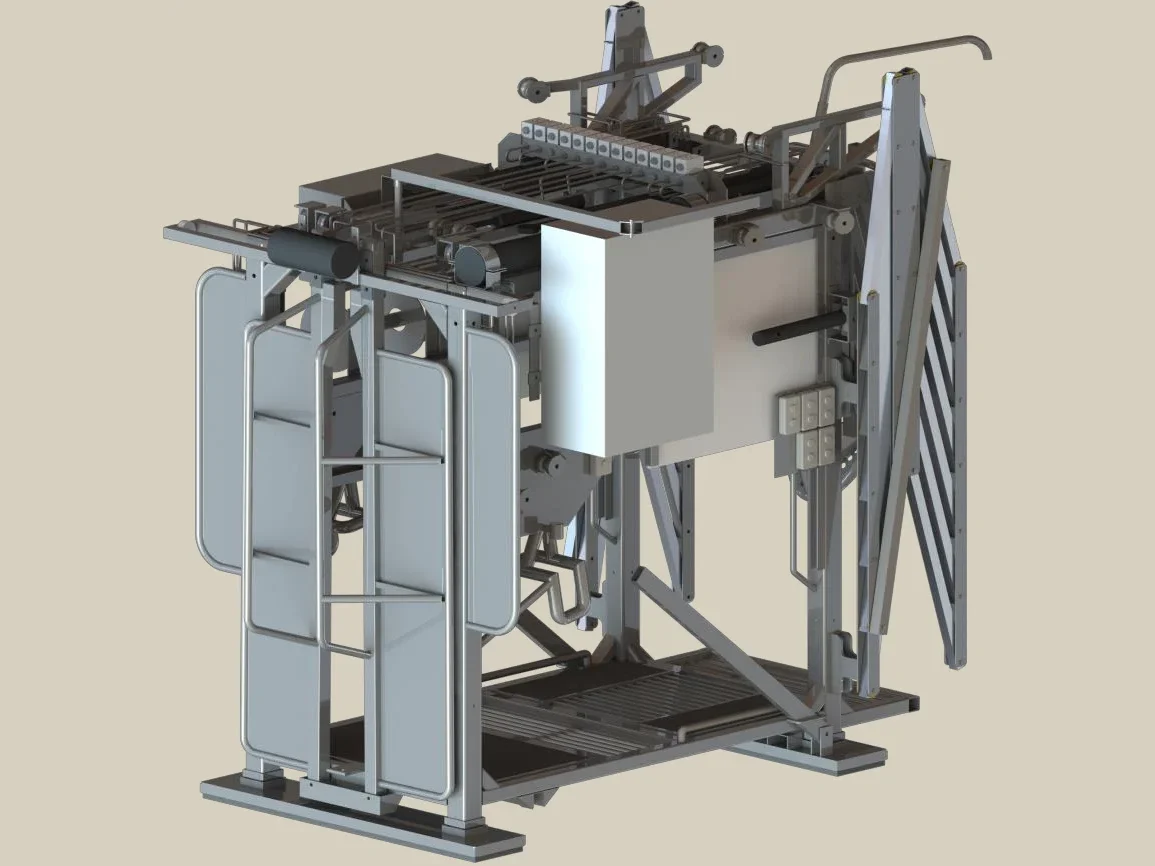

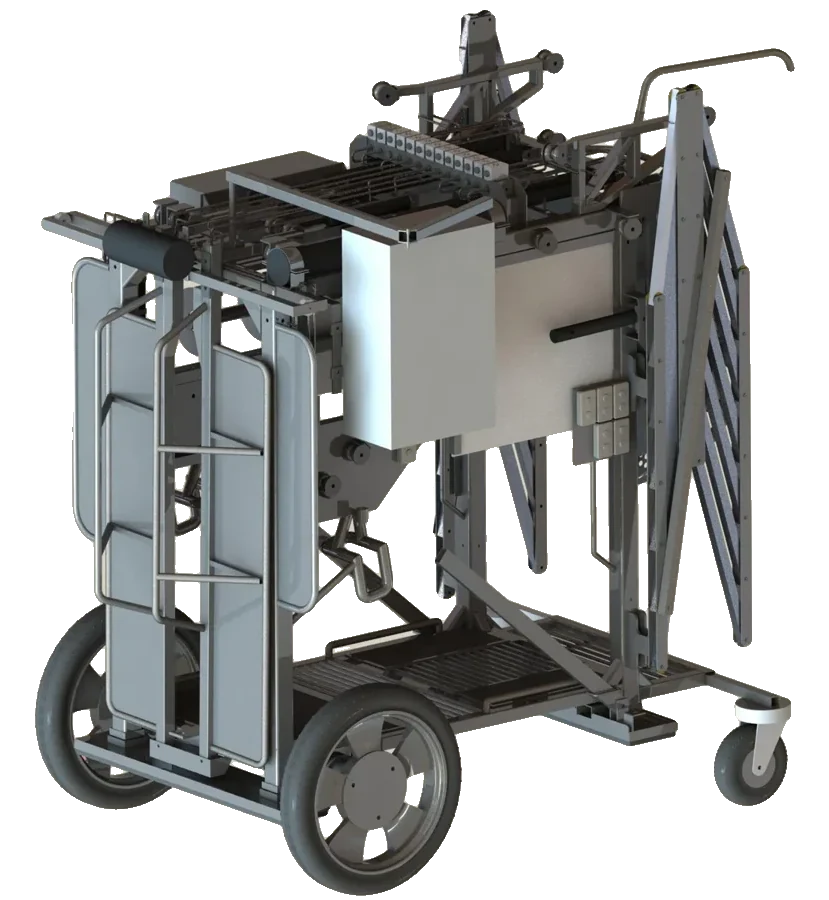

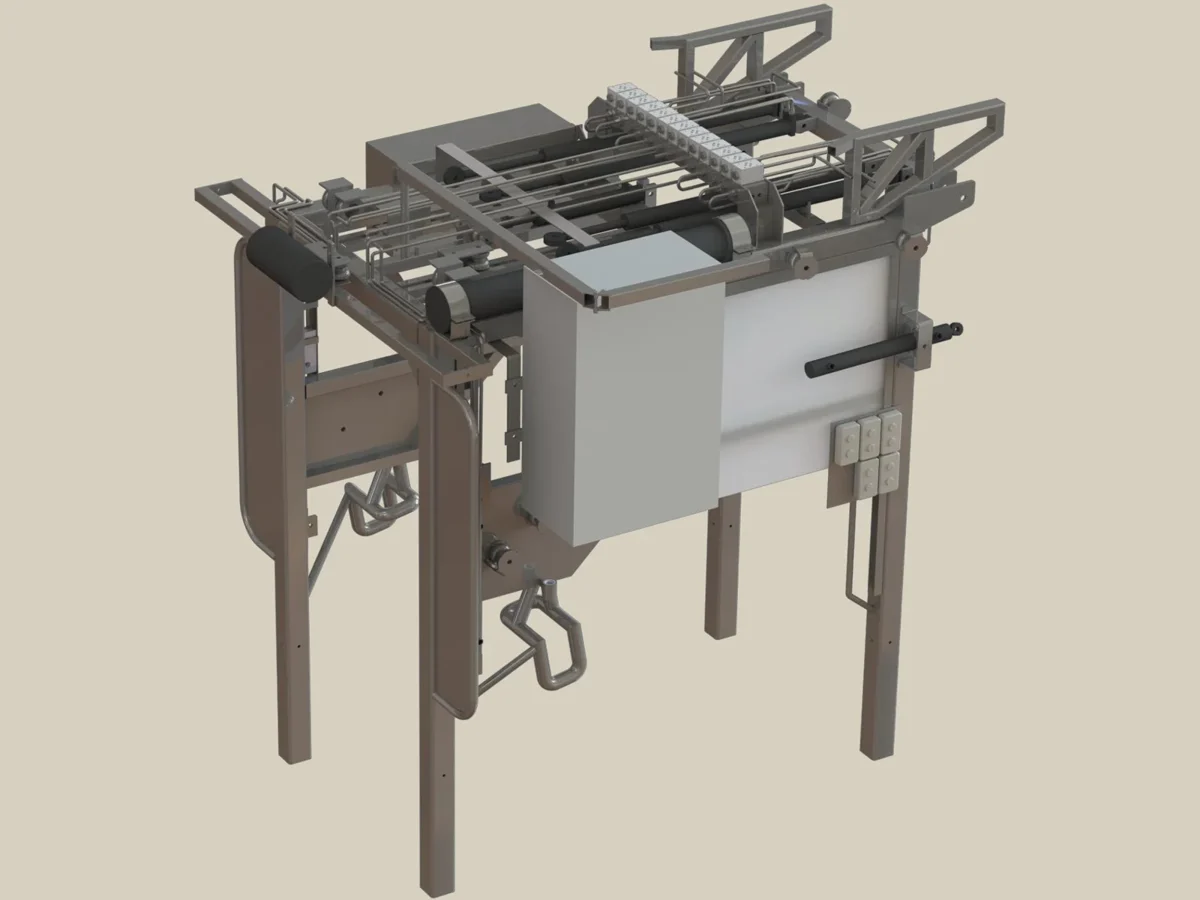

A safe, portable hydraulic trimming machine for cattle between 800 and 1200 kg. Thirteen hydraulic actuators drive the machine lift, leg lifts and gates, on a stainless frame that had to stay light without losing stiffness under eccentric animal loads.
Frames, mechanisms and hydraulics — designed, analysed and taken to fabrication.
- Practice
- Mechanical & Manufacturing
- Area
- Scope
- Handover
Results

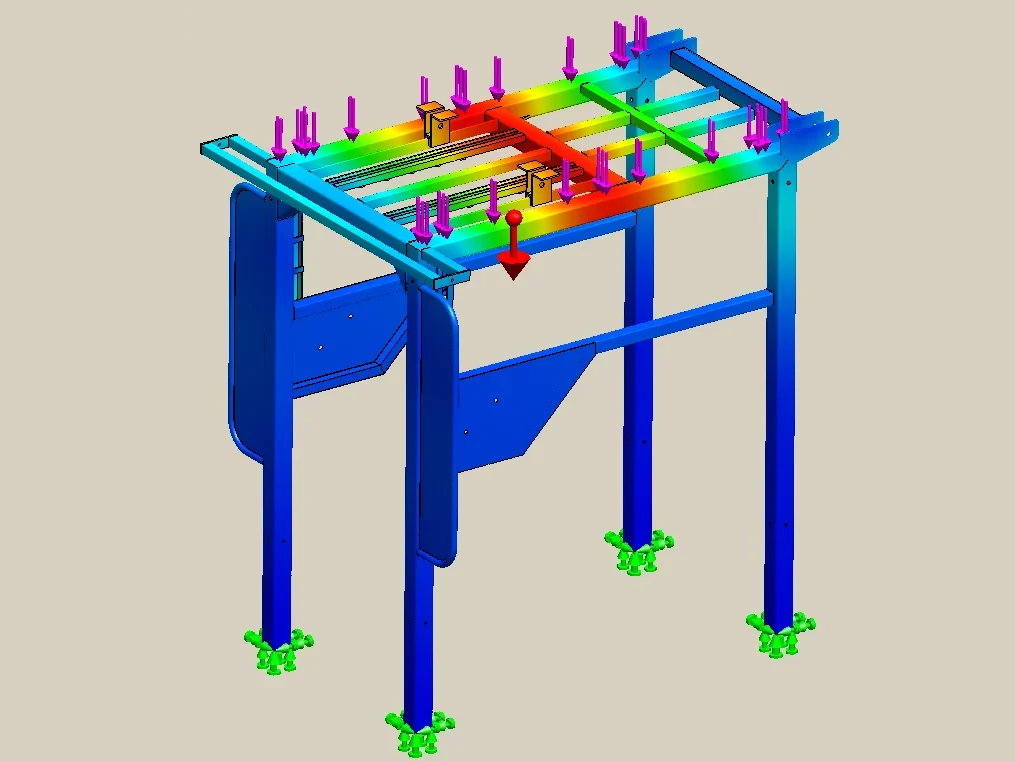

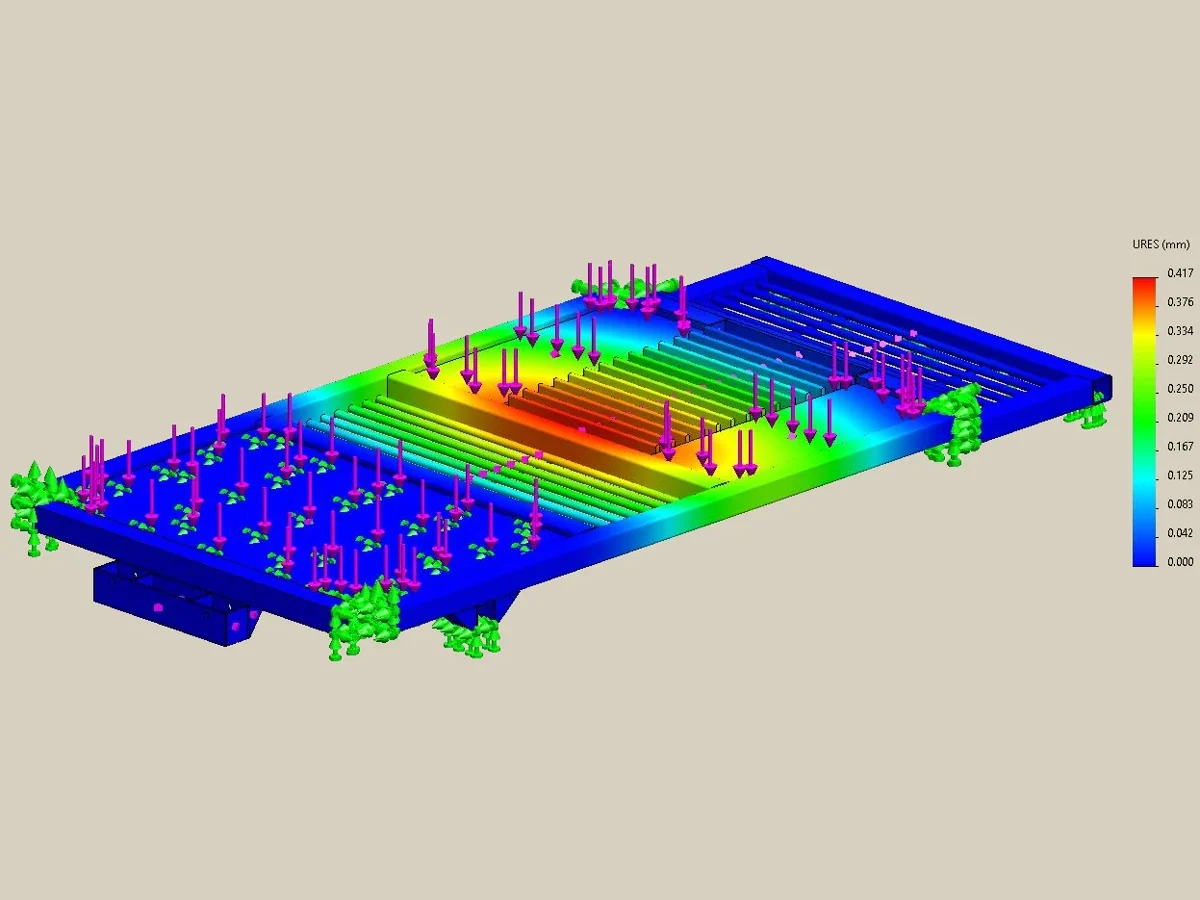

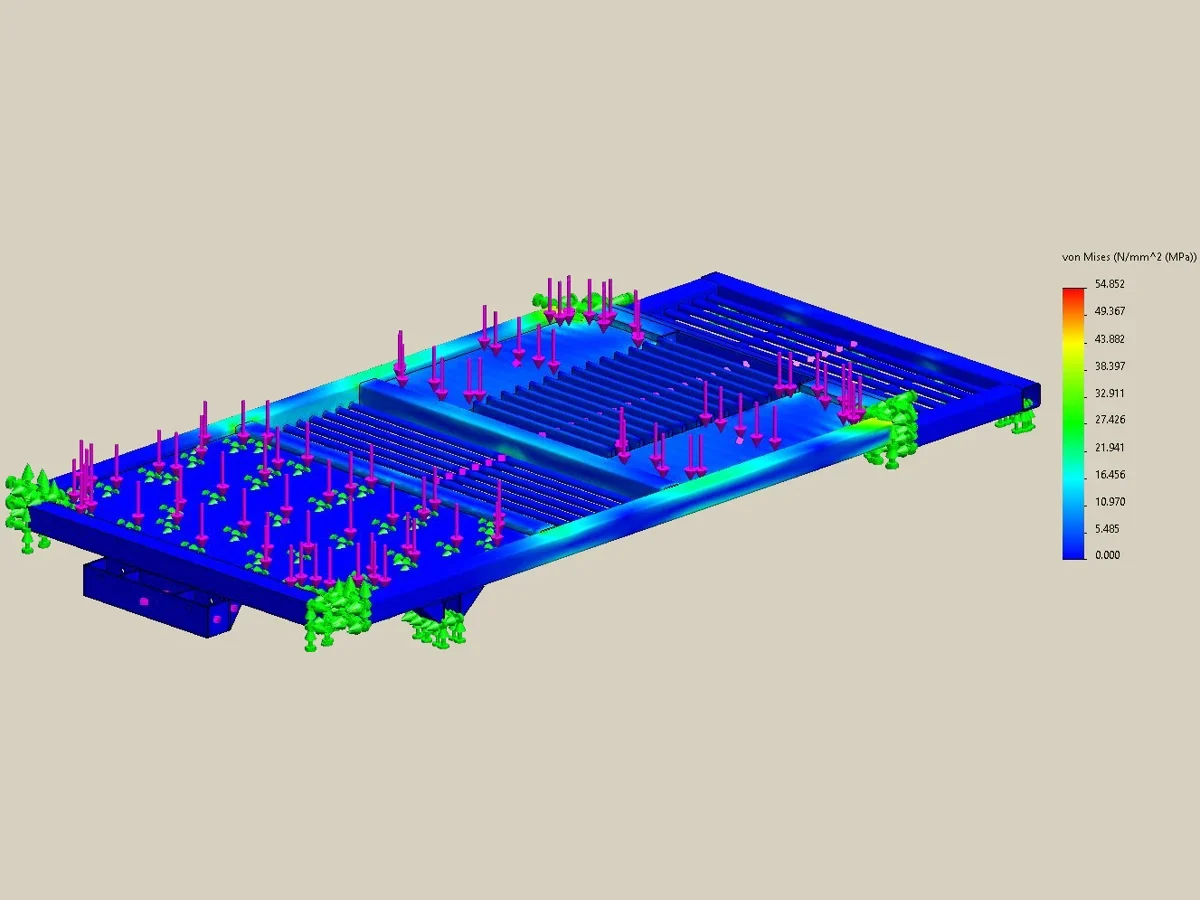

Figures from the delivered design and its testing.
012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

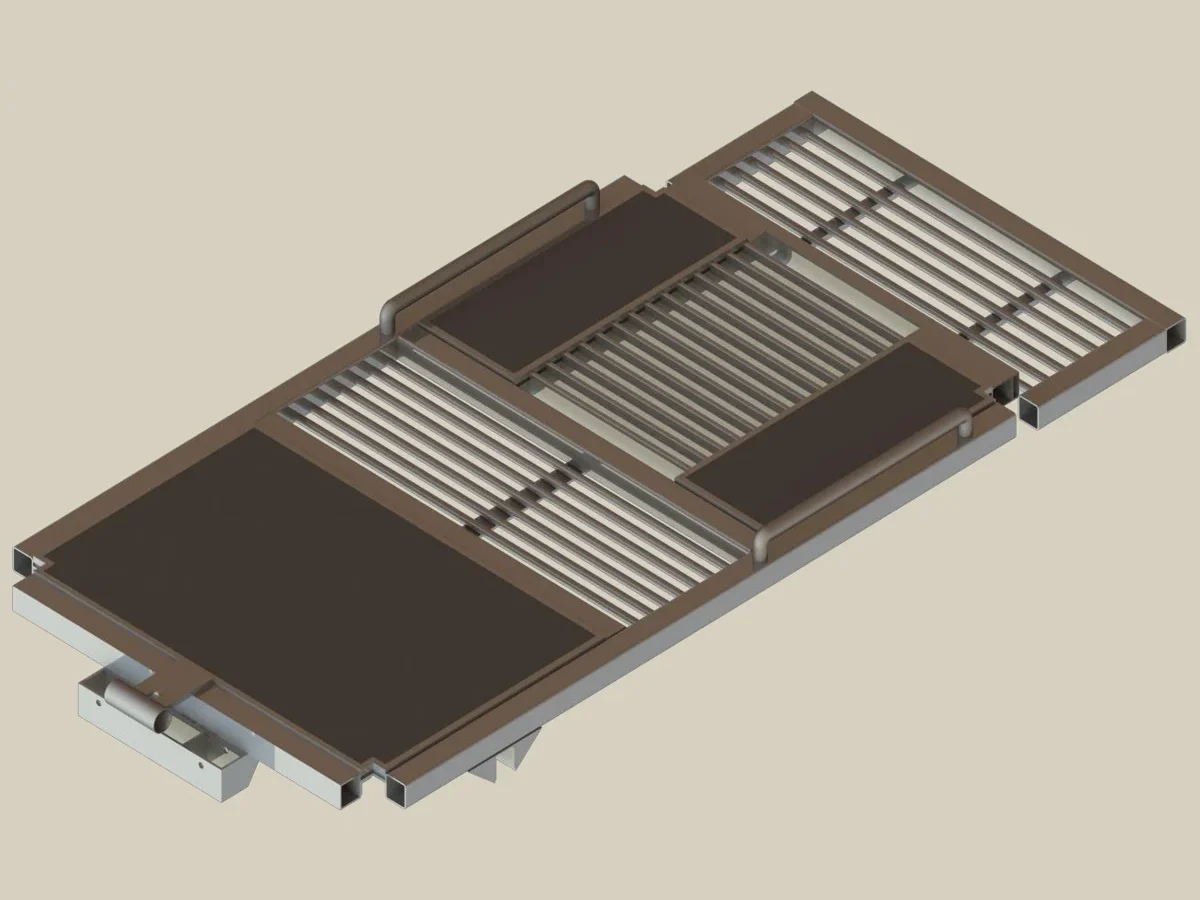

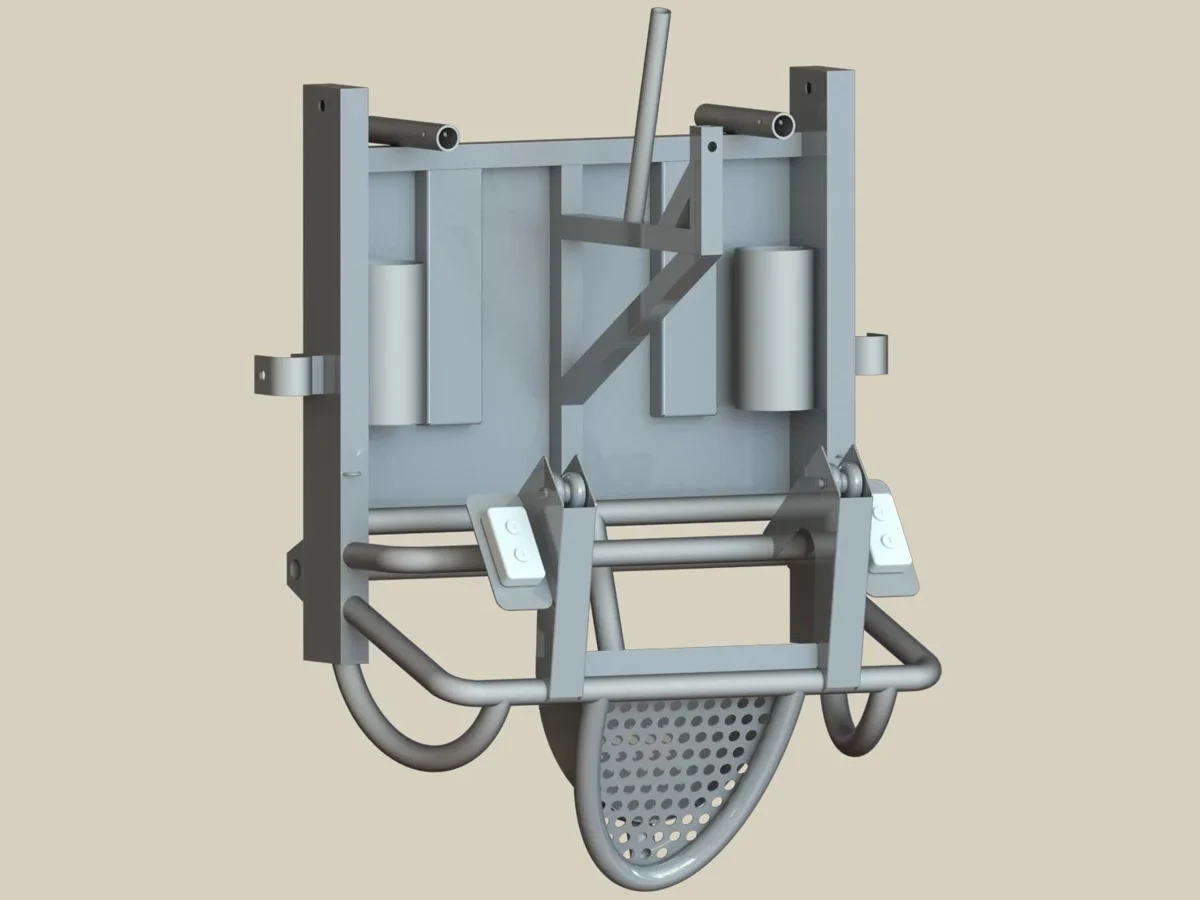

CAD models with GD&T and BOMs
012345678901234567890123456789012345678901234567890123456789
Faster trimming
012345678901234567890123456789012345678901234567890123456789
Better animal handling
012345678901234567890123456789012345678901234567890123456789
Lower material cost via DFMA
012345678901234567890123456789012345678901234567890123456789
Added structural durability
012345678901234567890123456789012345678901234567890123456789

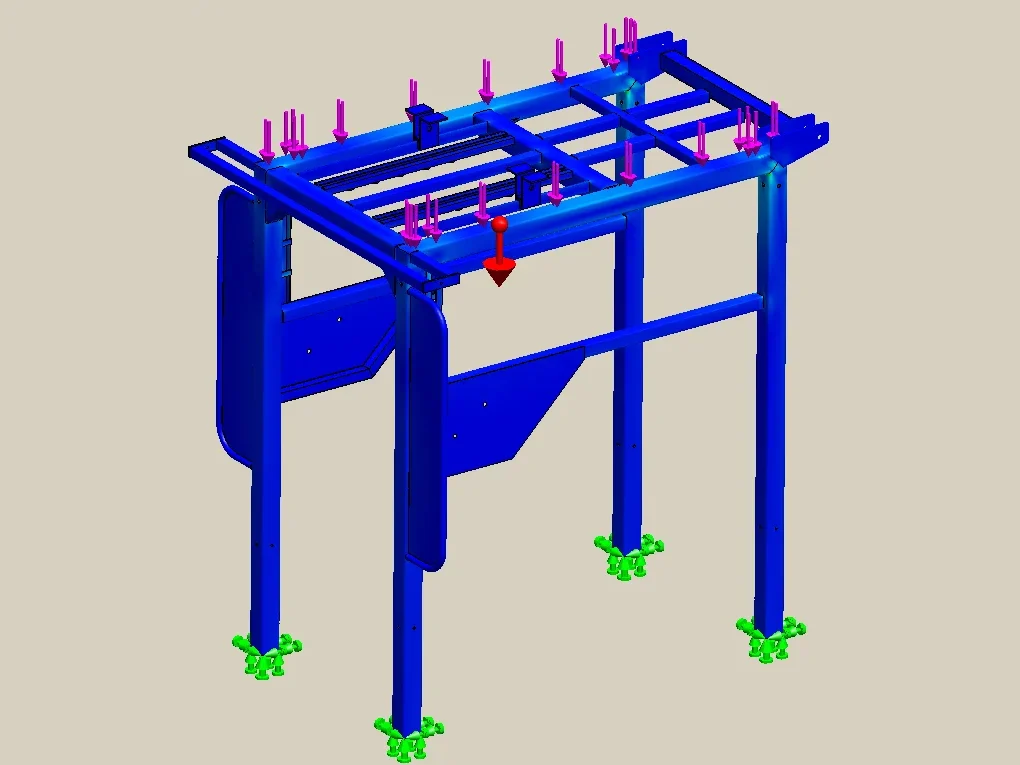

Factor of safety, main frame
